- Product No.：TC
Framework Oil Seal Rubber Oil Seal Oil Seal TC Seal Mechanical Seal Manufacturer Standard Parts Wholesale
Description-TC Oil Seal:
The TC oil seal is a mechanical component used to seal oil. TC skeleton oil seal isolates the parts of the transmission component that need to be lubricated from the output components so that lubrication and leakage are not allowed.

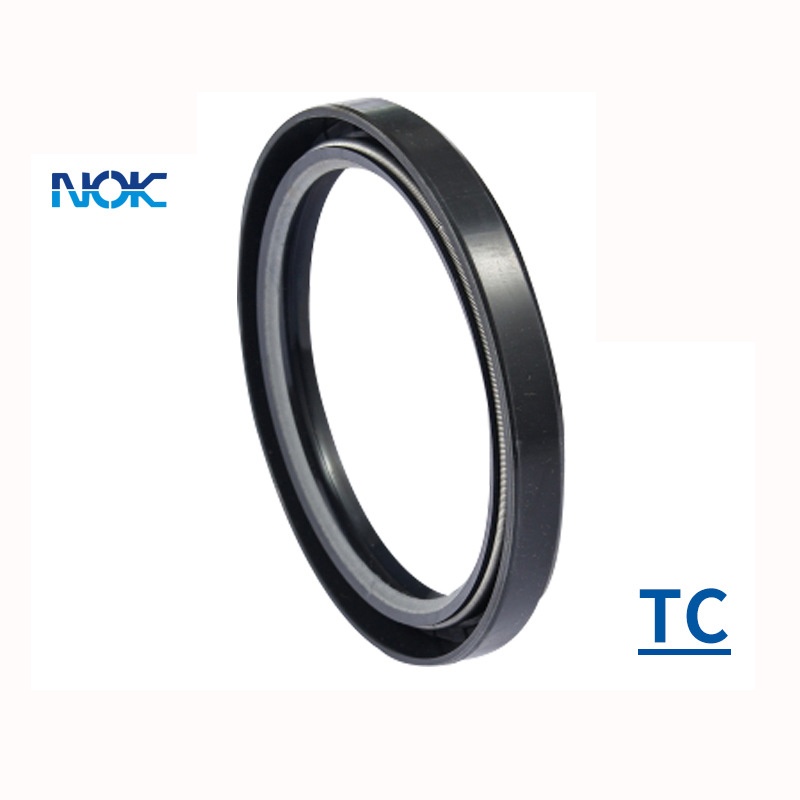

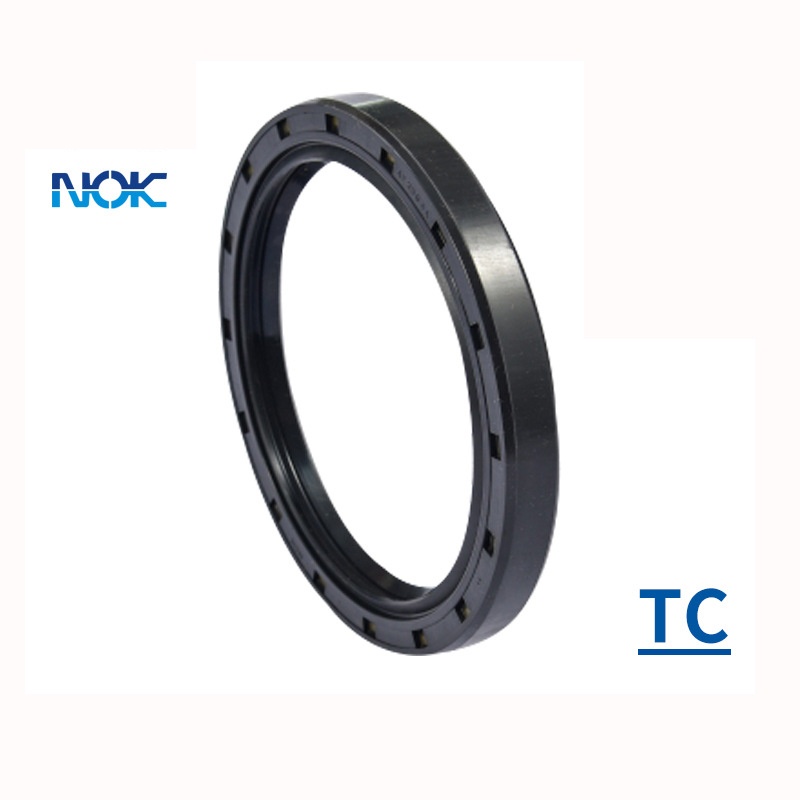

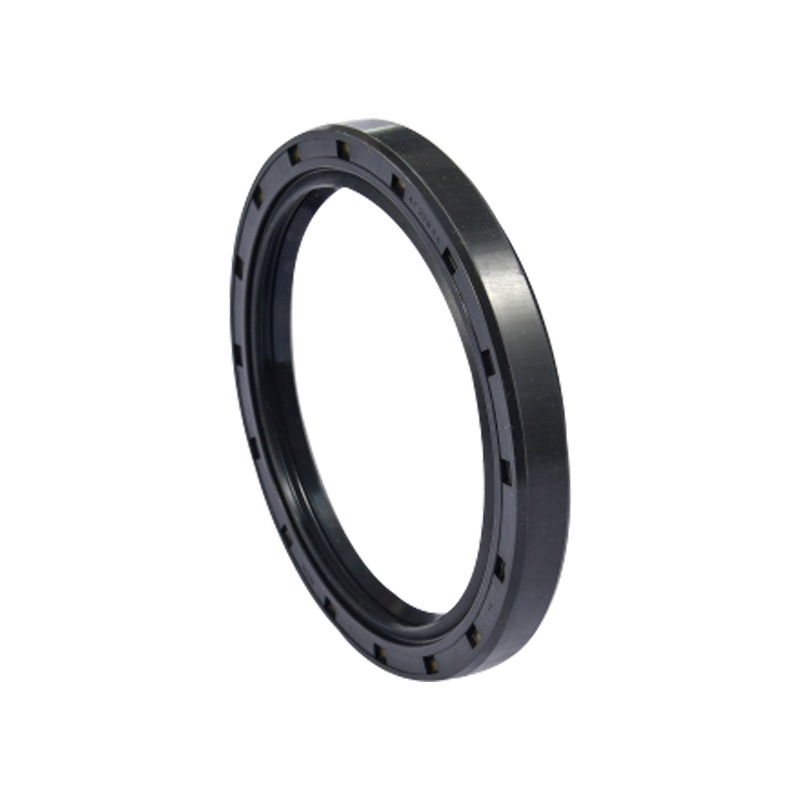

This is a rubber-covered double-lip oil seal with a self-tightening spring. Generally speaking, the oil seal often refers to this TC oil seal.
The function of the skeleton oil seal is to isolate the parts that need lubrication from the output parts in the transmission parts, so as not to let the lubricating oil leak. It is usually used in the transmission parts.
The rotary shaft is a rotary shaft lip seal. The skeleton acts as a reinforcing steel bar in concrete members and keeps the shape and tension of the oil seal. According to the skeleton type, it can be divided into internal skeleton oil seal, external skeleton oil seal, and internal and external skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshaft, camshaft, differential, shock absorber, engine, axle, front and rear wheels, and other parts.
Description-TC Oil Seal:
The TC oil seal is a mechanical component used to seal oil. TC skeleton oil seal isolates the parts of the transmission component that need to be lubricated from the output components so that lubrication and leakage are not allowed.
This is a rubber-covered double-lip oil seal with a self-tightening spring. Generally speaking, the oil seal often refers to this TC oil seal.
The function of the skeleton oil seal is to isolate the parts that need lubrication from the output parts in the transmission parts, so as not to let the lubricating oil leak. It is usually used in the transmission parts.
The rotary shaft is a rotary shaft lip seal. The skeleton acts as a reinforcing steel bar in concrete members and keeps the shape and tension of the oil seal. According to the skeleton type, it can be divided into internal skeleton oil seal, external skeleton oil seal, and internal and external skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshaft, camshaft, differential, shock absorber, engine, axle, front and rear wheels, and other parts.
| Type | TC TB TA SC SB SA VC VB VA KC KB KA TCV TCN |
| Temperature | -35~+250ºC |
| Press | 0~0.05MPA |
| Rotational Speed | 0-25m/s |
| Medium | lubricating Oil, Grease, Water |
| Other material of oil seal | Silicone, NBR, Metal & Stainless Steel, PTFE, etc. |
| Production equipment | includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines, |
| rubber machines, CNC machine tools, temperature-controlled ovens, and detectors | |
| Application | High-pressure hydraulic seal auto rubber oil seal |
| 1. Fluid system (static & dynamic) | |
| 2. Hydraulic system (dynamic) | |
| 3. Pneumatic system (dynamic) | |
| 4. Oil or grease media sealing | |
| 5. Water media sealing | |
| 6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers, | |
| exercise equipment. |
These are just a few of the sizes. And we can also custom the size of your requirements.
Please contact us to tell me your request.|
SIZE
|
SIZE
|
SIZE
|
SIZE
|
SIZE
|
|
35*54*7
|
44*57*9
|
53*70*9
|
63*92*10
|
72*95*10
|
|
36*56*7
|
45*56*7
|
54*72*8
|
64*93.3*9
|
73*98*12
|
|
37*50*6
|
46*58*5
|
55*70*8
|
65*81*7
|
74*96*7
|
|
38*50*12
|
47*58*7
|
56*76*6
|
66*86*9
|
75*90*13
|
|
38*50*12
|
48*63*10
|
57*71*7
|
67*88*9
|
76*93*10
|
|
40*50*6
|
49*63*9
|
58*72*8
|
68*82*10
|
76*93*10
|
|
41*54*8
|
50*62*12
|
59*72*12
|
69*92*14
|
80*95*8
|
|
42*52*4
|
51*70*9.5
|
60*72*9
|
70*87*7
|
80*95*8
|
|
43*55*6
|
52*67*6.7
|
62*75*7
|
71*88*8
|
90*105*12
|
Different Type Rotary Shaft Oil Seal
| Different Type Rotary Shaft Oil Seal | ||||
| Type | Material | Lip | Spring | Feature |
| TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| SC | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| DC | NBR | Double Lips | Double | Double Springs |
| VC | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| TCV | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | Single | Inside thread R |
