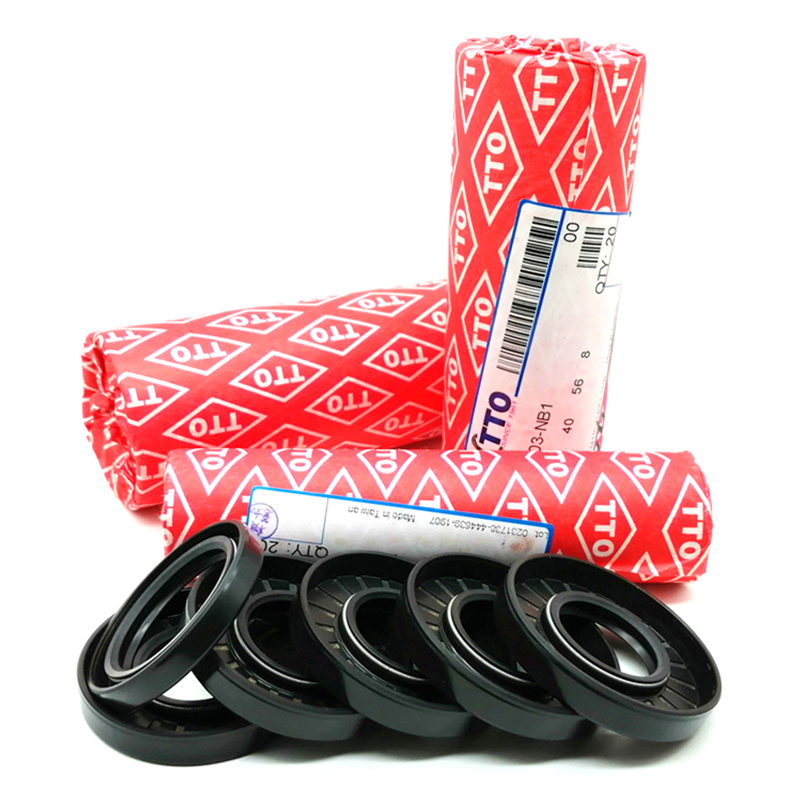

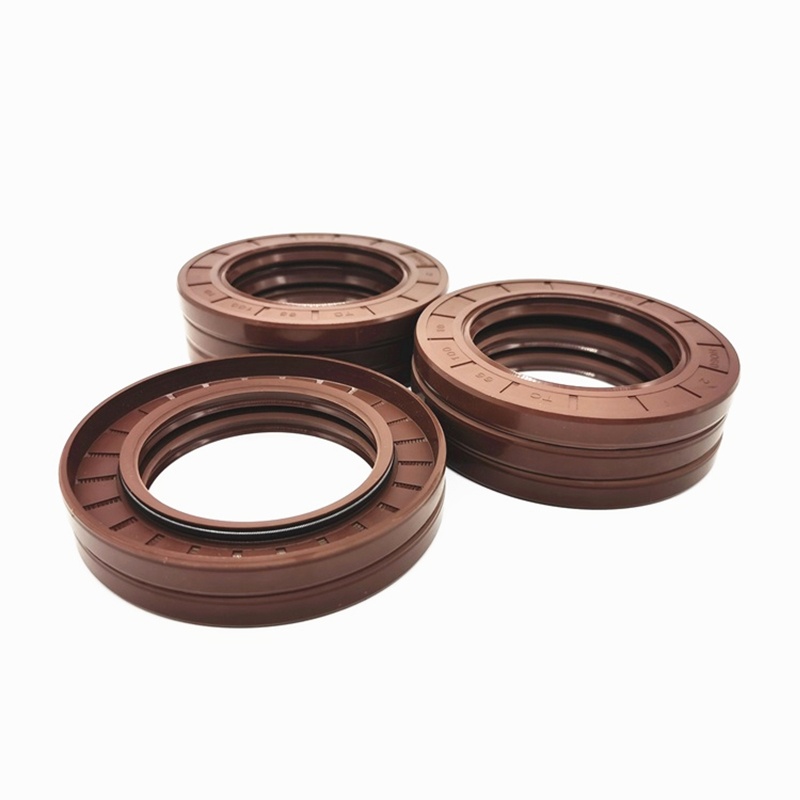

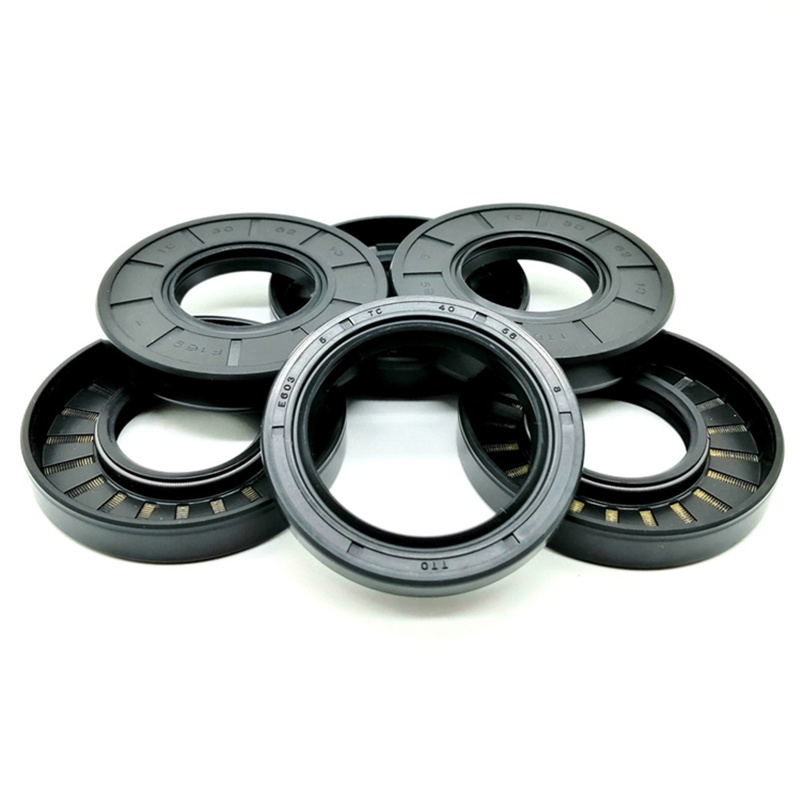

Taiwan Tto Oil Seal NBR FKM Acm Vmq Rubber Oil Seal Sc Tcv Tb Tb2 Sb HTC Tc Oil Seal Tto
- Product No.:TTO OIL SEAL
Product Description
Taiwan TTO Oil Seal NBR FKM ACM VMQ Rubber Oil Seal SC TCV TB TB2 SB HTC TC Oil Seal TTO
Description-TTO Oil Seal:
TTO Oil Seals close spaces between stationary and moving components in mechanical equipment, helping prevent lubricant escape.
Oil seals greatly reduce wear, temparature rise and powerloss, thus ensuring total reliability,
durability and equipment efficiency.Extended Service Life.
The function of the skeleton oil seal is to isolate the parts that need lubrication from the output parts in the transmission parts, so as not to let the lubricating oil leak. It is usually used in the transmission parts.
The rotary shaft is a rotary shaft lip seal. The skeleton acts as a reinforcing steel bar in concrete members and keeps the shape and tension of the oil seal. According to the skeleton type, it can be divided into internal skeleton oil seal, external skeleton oil seal, and internal and external skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshaft, camshaft, differential, shock absorber, engine, axle, front and rear wheels, and other parts.
Description-TTO Oil Seal:
TTO Oil Seals close spaces between stationary and moving components in mechanical equipment, helping prevent lubricant escape.
Oil seals greatly reduce wear, temparature rise and powerloss, thus ensuring total reliability,
durability and equipment efficiency.Extended Service Life.
The function of the skeleton oil seal is to isolate the parts that need lubrication from the output parts in the transmission parts, so as not to let the lubricating oil leak. It is usually used in the transmission parts.
The rotary shaft is a rotary shaft lip seal. The skeleton acts as a reinforcing steel bar in concrete members and keeps the shape and tension of the oil seal. According to the skeleton type, it can be divided into internal skeleton oil seal, external skeleton oil seal, and internal and external skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshaft, camshaft, differential, shock absorber, engine, axle, front and rear wheels, and other parts.
Type | EPDM, NBR, SBR, NR, Silicone(VMQ), Neoprene(CR), HNBR, XNBR, FKM, FFKM, FVMQ, FLAS, PTFE, PU, ECO, IIR, ACR, etc... |
Temperature | -35~+250ºC |
Press | 0~0.05MPA |
Rotational Speed | 0-25m/s |
Medium | lubricating Oil, Grease, Water |
Other material of oil seal | Silicone, NBR, Metal & Stainless Steel, PTFE, etc. |
Production equipment | includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines, |
rubber machines, CNC machine tools, temperature-controlled ovens, and detectors | |
Application | High-pressure hydraulic seal auto rubber oil seal |
1. Fluid system (static & dynamic) | |
2. Hydraulic system (dynamic) | |
3. Pneumatic system (dynamic) | |
4. Oil or grease media sealing | |
5. Water media sealing | |
6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers, | |
exercise equipment. |
These are just a few of the sizes. And we can also custom the size of your requirements.
Please contact us to tell me your request.
SIZE
|
SIZE
|
SIZE
|
SIZE
|
SIZE
|
35*54*7
|
44*57*9
|
53*70*9
|
63*92*10
|
72*95*10
|
36*56*7
|
45*56*7
|
54*72*8
|
64*93.3*9
|
73*98*12
|
37*50*6
|
46*58*5
|
55*70*8
|
65*81*7
|
74*96*7
|
38*50*12
|
47*58*7
|
56*76*6
|
66*86*9
|
75*90*13
|
38*50*12
|
48*63*10
|
57*71*7
|
67*88*9
|
76*93*10
|
40*50*6
|
49*63*9
|
58*72*8
|
68*82*10
|
76*93*10
|
41*54*8
|
50*62*12
|
59*72*12
|
69*92*14
|
80*95*8
|
42*52*4
|
51*70*9.5
|
60*72*9
|
70*87*7
|
80*95*8
|
43*55*6
|
52*67*6.7
|
62*75*7
|
71*88*8
|
90*105*12
|
Different Type Rotary Shaft Oil Seal
Different Type Rotary Shaft Oil Seal | ||||
Type | Material | Lip | Spring | Feature |
TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
TB | NBR | Double Lips | Single | Metal Case |
TA | NBR | Double Lips | Single | Metal Case |
SC | NBR & FKM | Single | Single | Double Metal Shell |
SB | NBR | Single | Single | Metal Case |
SA | NBR | Single | Single | Double Metal Shell |
DC | NBR | Double Lips | Double | Double Springs |
VC | NBR & FKM | Single | Without | Metal Coverd Rubber |
VB | NBR | Single | Without | Metal Case |
TCV | NBR | Double Lips | Single | High Pressure |
TCN | NBR | Double Lips | Single | High Pressure |
PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
HTCR | NBR & FKM | Double Lips | Single | Inside thread R |
