The Specifications of Dkb / Dkbi Oil Cylinder Dust Seal and Polyurethane Dust Seal Ring Are Complete
- Product No.：DKB/DKBI
The Specifications Of Dkb / Dkbi Oil Cylinder Dust Seal And Polyurethane Dust Seal Ring Are Complete
Description-DKB Oil Seal:

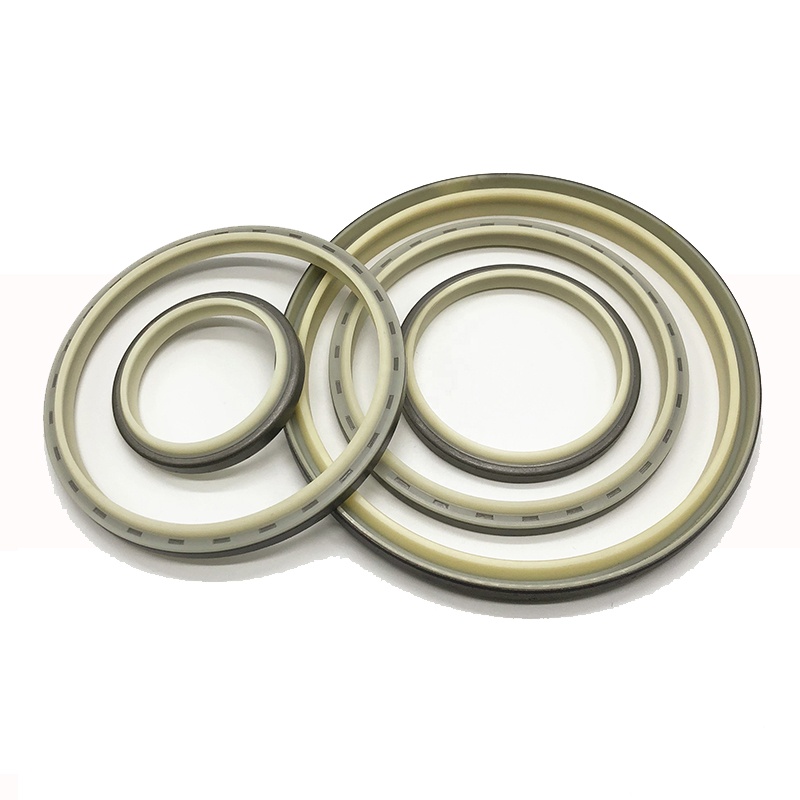

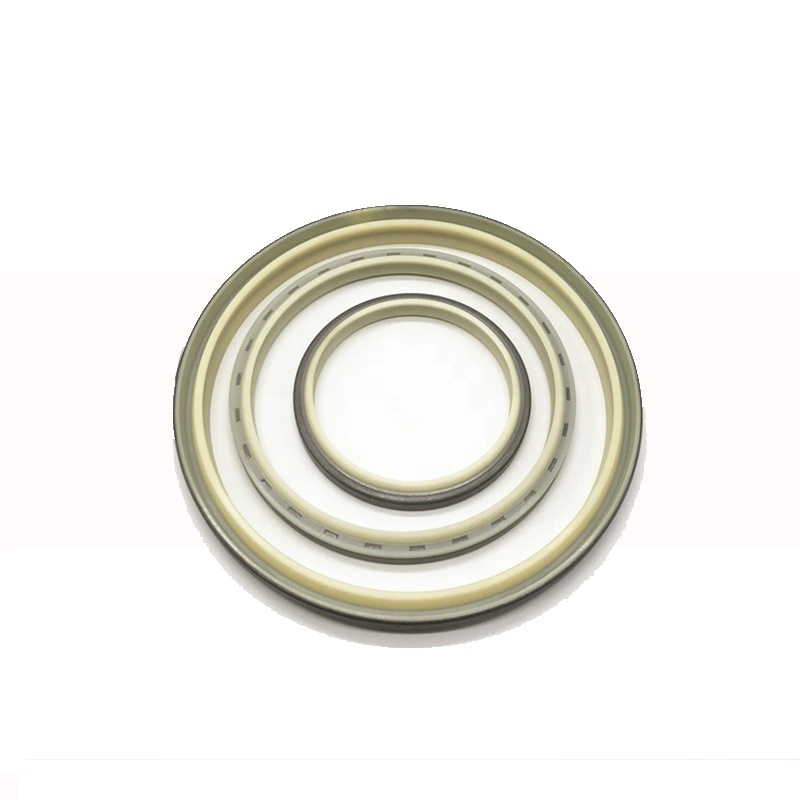

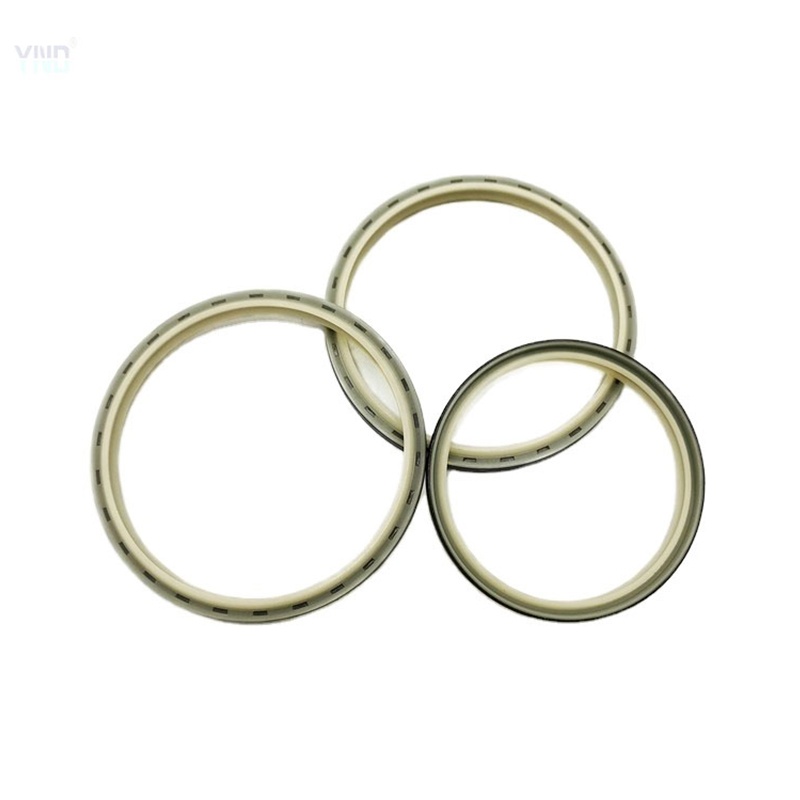

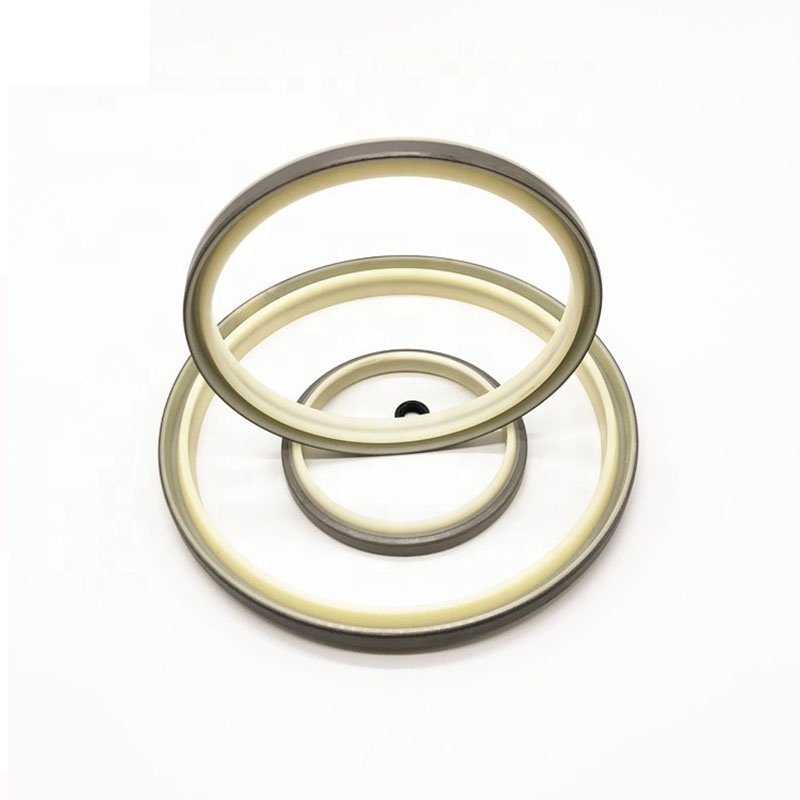

DKB is a dust-proof and oil - scraping double - acting dust-proof seal. The lip metal skeleton dustproof ring can prevent the entry of dust, dirt, sand and metal chips, prevent scratch and protect the piston rod metal surface, prolong the working life of sealing parts and have the function of scraping oil.
The function of the skeleton oil seal is to isolate the parts that need lubrication from the output parts in the transmission parts, so as not to let the lubricating oil leak. It is usually used in the transmission parts.
The rotary shaft is a rotary shaft lip seal. The skeleton acts as a reinforcing steel bar in concrete members and keeps the shape and tension of the oil seal. According to the skeleton type, it can be divided into internal skeleton oil seal, external skeleton oil seal, and internal and external skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshaft, camshaft, differential, shock absorber, engine, axle, front and rear wheels, and other parts.
Description-DKB Oil Seal:
DKB is a dust-proof and oil - scraping double - acting dust-proof seal. The lip metal skeleton dustproof ring can prevent the entry of dust, dirt, sand and metal chips, prevent scratch and protect the piston rod metal surface, prolong the working life of sealing parts and have the function of scraping oil.
The function of the skeleton oil seal is to isolate the parts that need lubrication from the output parts in the transmission parts, so as not to let the lubricating oil leak. It is usually used in the transmission parts.
The rotary shaft is a rotary shaft lip seal. The skeleton acts as a reinforcing steel bar in concrete members and keeps the shape and tension of the oil seal. According to the skeleton type, it can be divided into internal skeleton oil seal, external skeleton oil seal, and internal and external skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshaft, camshaft, differential, shock absorber, engine, axle, front and rear wheels, and other parts.
| Type | TC TB TA SC SB SA VC VB VA KC KB KA TCV TCN |
| Temperature | -35~+250ºC |
| Press | 0~0.05MPA |
| Rotational Speed | 0-25m/s |
| Medium | lubricating Oil, Grease, Water |
| Other material of oil seal | Silicone, NBR, Metal & Stainless Steel, PTFE, etc. |
| Production equipment | includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines, |
| rubber machines, CNC machine tools, temperature-controlled ovens, and detectors | |
| Application | High-pressure hydraulic seal auto rubber oil seal |
| 1. Fluid system (static & dynamic) | |
| 2. Hydraulic system (dynamic) | |
| 3. Pneumatic system (dynamic) | |
| 4. Oil or grease media sealing | |
| 5. Water media sealing | |
| 6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers, | |
| exercise equipment. |
These are just a few of the sizes. And we can also custom the size of your requirements.
Please contact us to tell me your request.|
SIZE
|
SIZE
|
SIZE
|
SIZE
|
SIZE
|
|
35*54*7
|
44*57*9
|
53*70*9
|
63*92*10
|
72*95*10
|
|
36*56*7
|
45*56*7
|
54*72*8
|
64*93.3*9
|
73*98*12
|
|
37*50*6
|
46*58*5
|
55*70*8
|
65*81*7
|
74*96*7
|
|
38*50*12
|
47*58*7
|
56*76*6
|
66*86*9
|
75*90*13
|
|
38*50*12
|
48*63*10
|
57*71*7
|
67*88*9
|
76*93*10
|
|
40*50*6
|
49*63*9
|
58*72*8
|
68*82*10
|
76*93*10
|
|
41*54*8
|
50*62*12
|
59*72*12
|
69*92*14
|
80*95*8
|
|
42*52*4
|
51*70*9.5
|
60*72*9
|
70*87*7
|
80*95*8
|
|
43*55*6
|
52*67*6.7
|
62*75*7
|
71*88*8
|
90*105*12
|
Different Type Rotary Shaft Oil Seal
| Different Type Rotary Shaft Oil Seal | ||||
| Type | Material | Lip | Spring | Feature |
| TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| SC | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| DC | NBR | Double Lips | Double | Double Springs |
| VC | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| TCV | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | Single | Inside thread R |
