Products >> Mechanical Seal >>

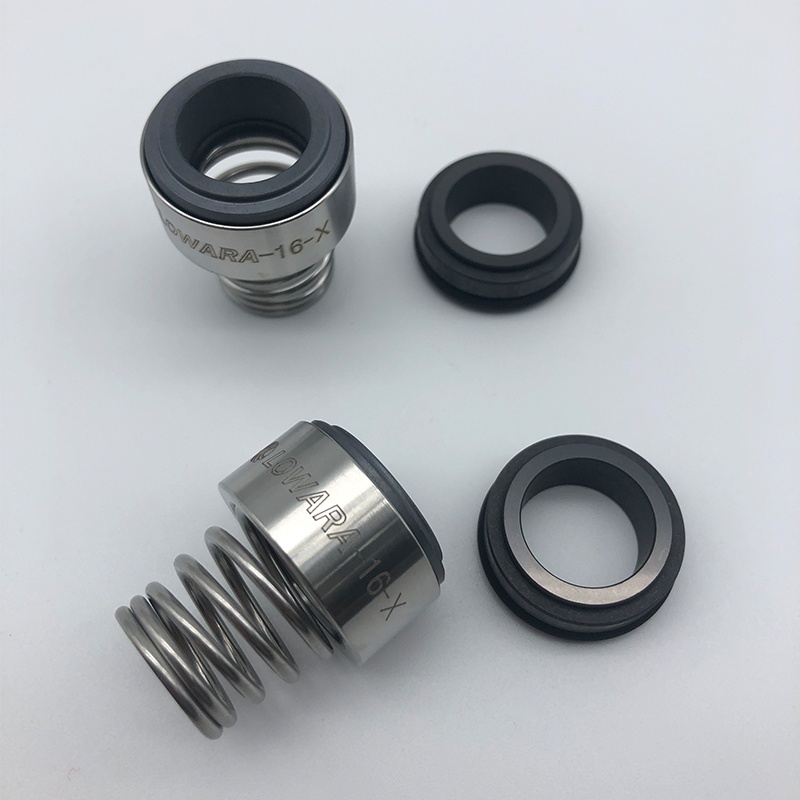

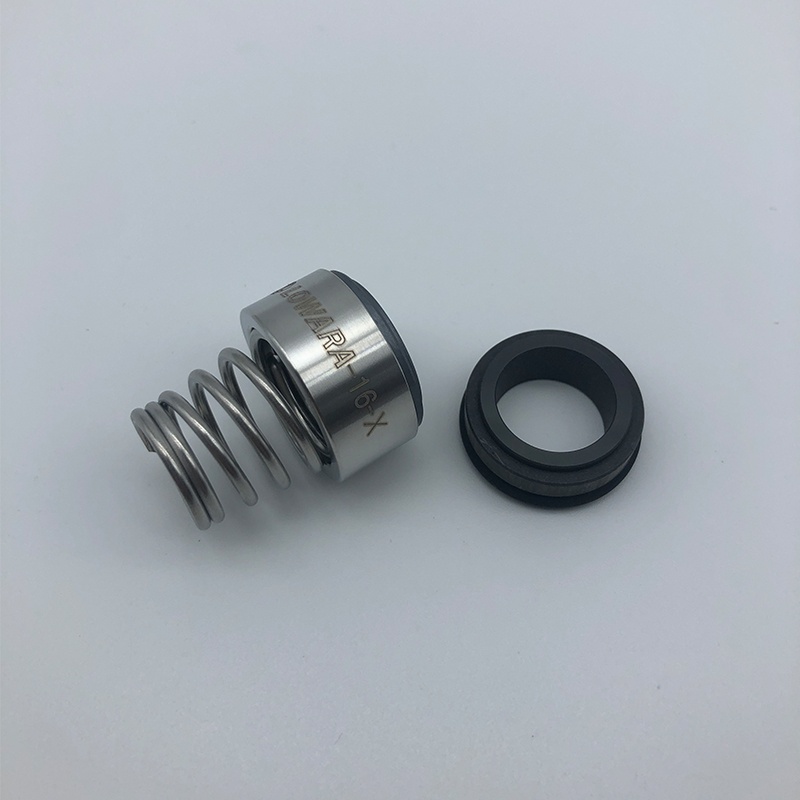

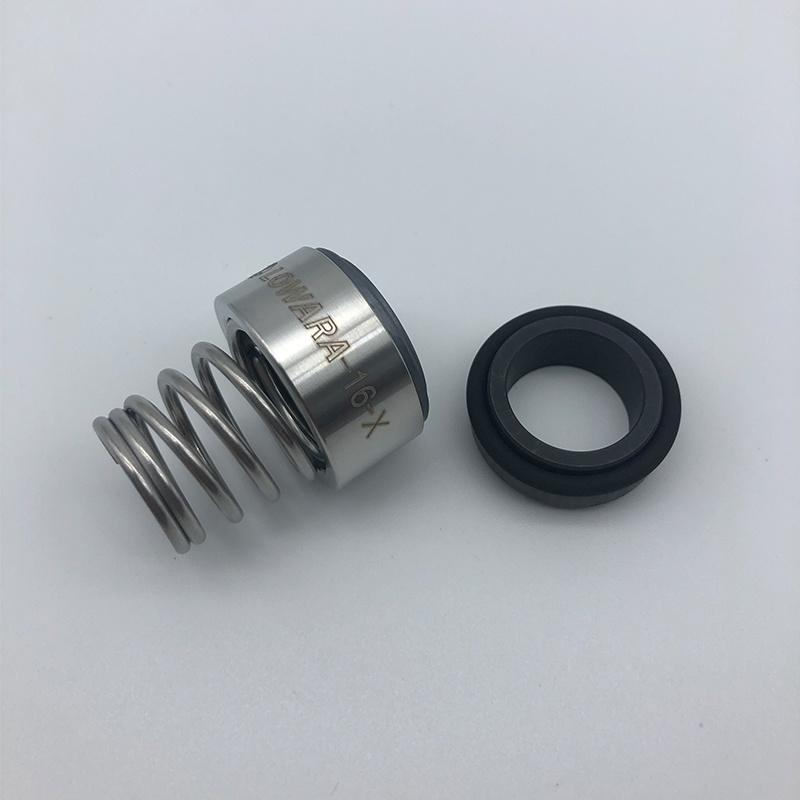

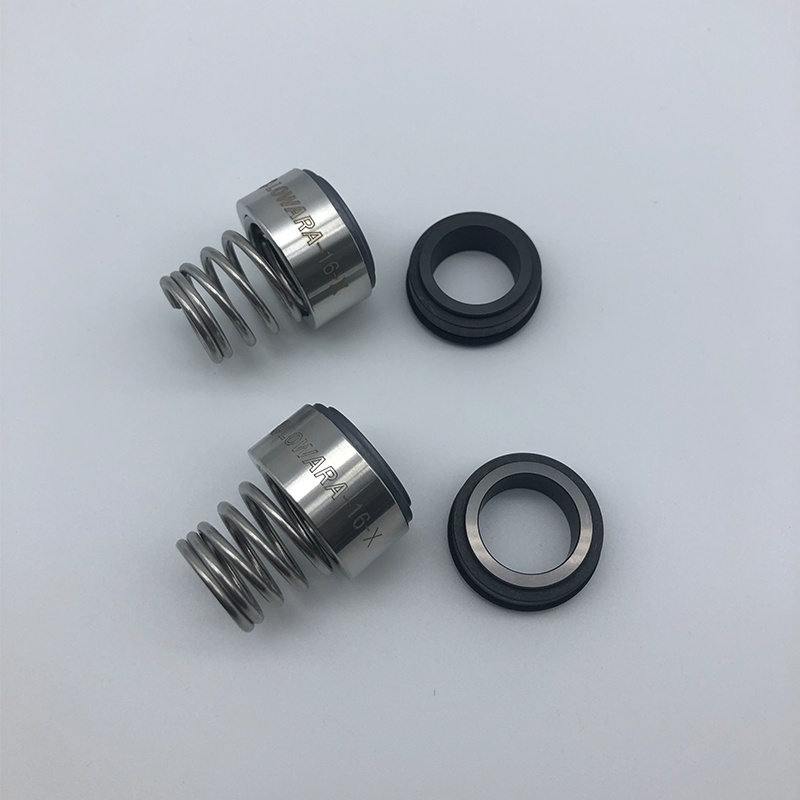

Mechanical Seal Lowara 16-X Sic/Car/Viton Sic/Sic/Viton for Lowara Pump
- Product No.：Lowara 16-X
Product Description
Mechanical Seal LOWARA 16-X SIC/CAR/VITON SIC/SIC/VITON for Lowara Pump
Description:
Operating Range:
Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear
Standard: Enterprise Standard
LWB-22 is identical to AES N-P0LXB, Vulcan Type 822 ,Lowara 0022 323 00,
Lowara 0022 323 02 , It is suited for the Flygt PX33 Flygt PX46 Flygt PX66 ,Goulds GSV series pumps
Material:
Rotary Ring: SiC / TC
O-Ring: , EPDM, NBR
Spring and Metal Parts: SUS304/SUS316
Stationary Ring: CAR/SIC /TC
Size: 12mm, 16mm, 22mm, 25mm
It suit SV-AND SVI SERIES LOWARA PUMPS.
Description:
Operating Range:
Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear
Standard: Enterprise Standard
LWB-22 is identical to AES N-P0LXB, Vulcan Type 822 ,Lowara 0022 323 00,
Lowara 0022 323 02 , It is suited for the Flygt PX33 Flygt PX46 Flygt PX66 ,Goulds GSV series pumps
Material:
Rotary Ring: SiC / TC
O-Ring: , EPDM, NBR
Spring and Metal Parts: SUS304/SUS316
Stationary Ring: CAR/SIC /TC
Size: 12mm, 16mm, 22mm, 25mm
It suit SV-AND SVI SERIES LOWARA PUMPS.
|
Operational conditions: |
Materials |
||
|
temperature |
-20ºC to +180ºC |
Stationary ring |
B,Q2,U2 |
|
Pressure |
<<1.2Mpa |
Rotary ring |
B,Q2,U2 |
|
Speed |
<<15m/s |
Secondary seal |
V,E,P |
|
Standard |
DIN24960 |
Spring and metal parts |
F,G |
|
Application: clean water,sewage water, Oil and other moderately corrosive fluids |
|||
