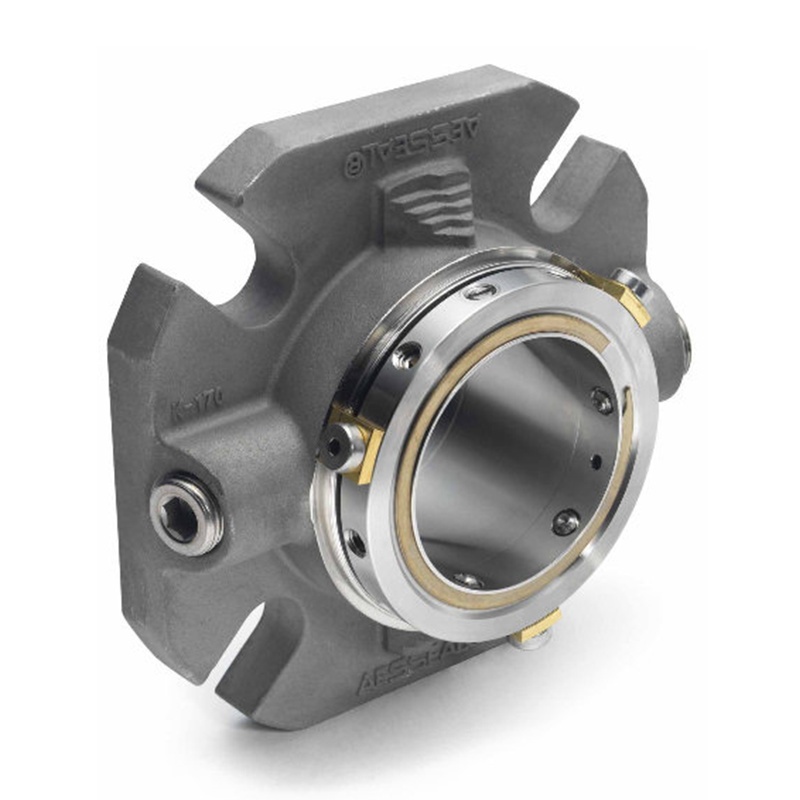

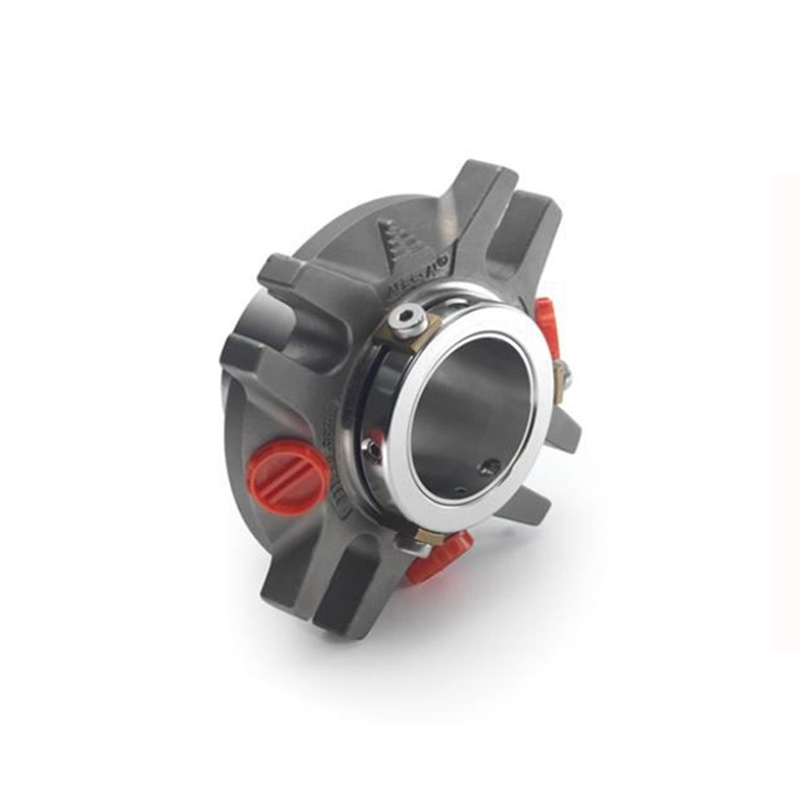

High Quality Offer Cartridge Seal Mechanical Seal Alternative To AES CSSN

CSSN Cartridge Mechanical Seal for Paper Pulp Pumps and Sewage Pumps

Suggested Operation Limits:

Temperature:-20ºC-200ºC

Speed:<=16M/S

Pressure:<=1.6Mpa

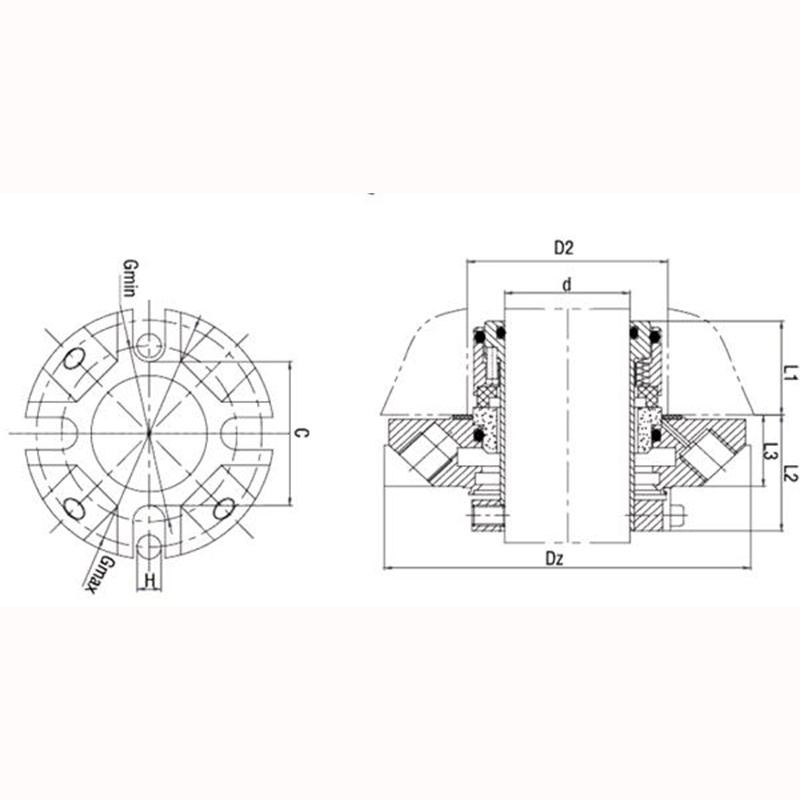

Size:1"-3.5"

Combined Material:

Rotary Face:CAR/SIC/TC

Stat Ring:SIC//TC

The type seal can replace with AES type CSSN cartridge seal.

Features:

1,Multi-spring design-Alloy 276 helical coil springs ensure accurate uniform seal face loading throughout seal life

2,Reliable drive-Drive screws clamp directly on to shaft or sleeve to minimise drive loss

3,Modular seal face design-Hydraulically-balanced seal face esign ensures optimum fluid film during process fluctuations

4,Captured rotary O-ring-Captured O-ring design prevents extrusion under vacuum conditions



Recommended Applications:

1,Process industry

2,Petrochemical industry

3,Chemical industry

4,Pharmaceutical industry

This seal can replace AES CSSN type has been designed as high-performance sealing solutions for general applications

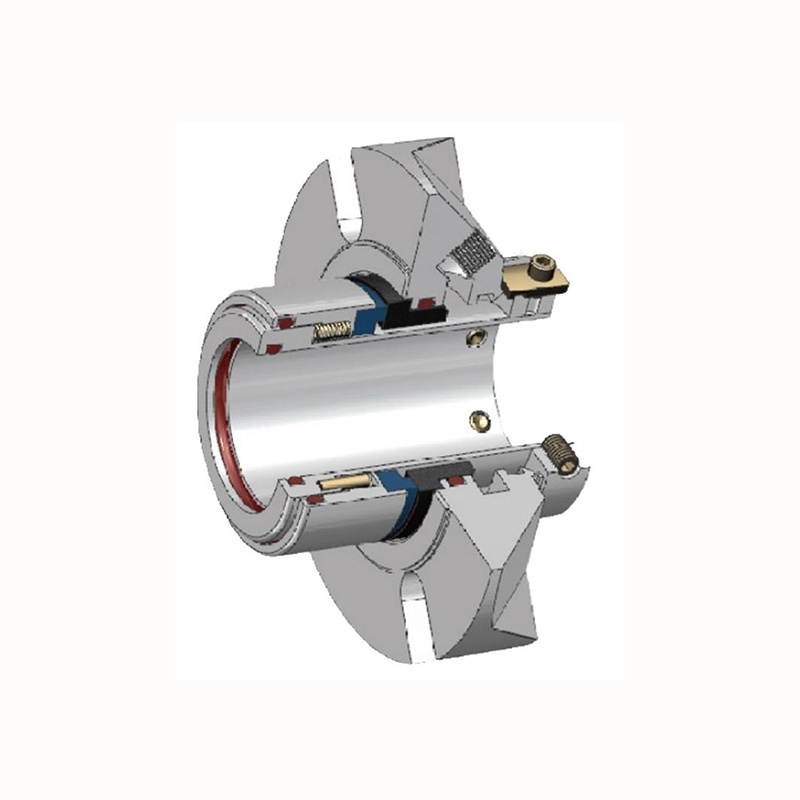

Double end, multiple springs, balanced, independent rotary direction, still structure, clamp transmission and cartridge seal. The compensation components are assembled into the flange and the elastomers protects the springs from the mediums to make sure the springs will not be jammed. Multiple springs make the loads on the seal faces balanced. The second end seal at the sealant side accomplish the second sealing and prevent the leakage of the mediums and sealants. The sleeve are supported by the elastomers on the shaft and there is no axial movement and no damage to the shaft. The seal faces are close to the rotor and have high cooling and lubrication efficiency. The special design of this seal can work with counter pressure and there are diversion trenches inside the flange so that the cooling effects are evenly distributed. This seal has to work with flush system and the sealant pressure should be 0.1 - 0.3 MPa and flow rate should be 3 - 8 L per minute.
